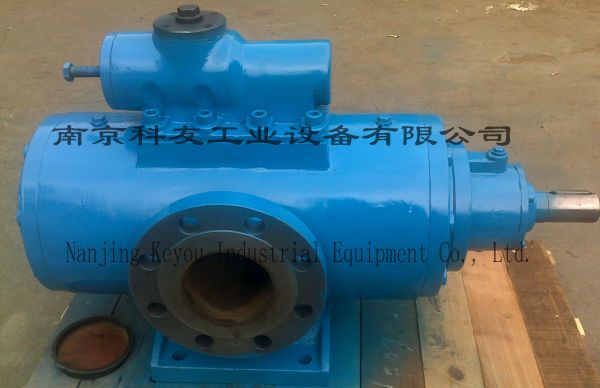

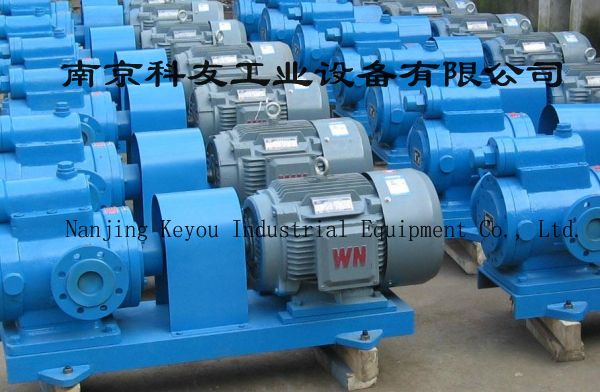

HSNH280-43三螺杆泵轧机润滑螺杆泵

HSNH280-43三螺杆泵轧机润滑螺杆泵

一、公司简介：

南京科友泵业有限公司是一家专业从事螺杆泵研发、生产及销售的公司，公司主要生产三螺杆泵（有HSN、HSJ、HSG、SM、HSAK等系列）、双螺杆泵（2G、2GRN等系列），各系列产品型号齐全，所生产产品广泛应用于选矿、冶金、煤炭、电力、石油、化工、建材、市政、环保等行业。

二、产品介绍

<一>工作原理

1、螺杆付随外界电机做旋转运动—》2、螺杆螺旋槽周期性打开，吸入腔容积增大，形成真空—》3、介质被吸入螺旋槽内，并被螺旋槽封闭住—》4、随着螺杆的旋转，介质随螺旋槽沿螺杆轴线向出口移动—》5、zui后介质被排除泵外

 <二>结构特点

1、结构*，性能*：改变传统高压平衡技术，采用主、从杆的轴向低压平衡装置，受力平衡均匀，螺杆不变形，运行可靠稳定，无脉动，噪声小

2、对立设计，密封可靠：泵采用机械密封形式，密封腔压力与吸入压力想通，同时结构设计上对密封腔进行充分循环冷却，确保密封效果，无泄漏

3、优化改进，外形美观：改变传统的进、出口位置，使得泵进出口在泵两侧并形成一条直线，外形美观，同时在设计上就行创新，在用户不改变现场管线就可以实现进出口的转换

4、安全阀组件，保护产品安全：产品所配安全阀可以瞬间保护泵，防过载，但不能作为管道的溢流阀使用

5、泵芯组件，方便维修和配件更换：泵结构简单紧凑，泵芯总成采用组件式结构，可整体取出便于维修、维护

６、进出口多种组合形式，方便现场管道连接

右出左进：常规使用，无进口代号

左出右进：反向进口，进出口代号为Ｚ

端进上出：尾端进口，进出口代号为Ｄ

（备注：进出口相对位置方向为从驱动电机端向泵方向观察）

７、多种安装方式，更好的满足工况要求

卧式安装【H】：同意普及型，公共底座连接

支架式安装【F】(也称法兰式)：减少机组面积，同轴性好

立式安装【S】：大大缩小安装所需的横向空间，同轴性好

<三>代码含义

HSN     H      280   -    54

系列代号   卧式   规格     螺旋升角

<四>性能要求

1、介质润滑性要求：有润滑性或部分润滑性要求

2、介质颗粒要求：无固体颗粒

3、流量范围：5--5300L/min

4、工作压力：<=4Mpa

5、转速要求：500--3000r/min

6、粘度范围：3--1500mm²/s

7、使用温度：0--150℃

8、允许吸上高度<=8m

<五>应用范围

常用于传输：润滑剂（油）类、植物油、水乙二醇；润滑脂、轻柴油、残渣燃料（油）类、其他粘稠化工介质等，广泛应用于选矿、冶金、煤炭、电力、石油、化工、建材、市政、环保等行业

<六>常见型号

HSN40系列

HSNH40-38 HSNF40-38  HSNS40-38  HSN40-38

HSNH40-46 HSNF40-46  HSNS40-46  HSN40-46

HSNH40-54 HSNF40-54  HSNS40-54  HSN40-54

HSN80系列

HSNH80-36 HSNF80-36  HSNS80-36  HSN80-36

HSNH80-42 HSNF80-42  HSNS80-42  HSN80-42

HSNH80-46 HSNF80-46  HSNS80-46  HSN80-46

HSNH80-54 HSNF80-54  HSNS80-54  HSN80-54

HSN120系列

HSNH120-42  HSNF120-42   HSNS120-42   HSN120-42

HSNH120-46  HSNF120-46   HSNS120-46   HSN120-46

HSNH120-54  HSNF120-54   HSNS120-54   HSN120-54

HSN210系列

HSNH210-40  HSNF210-40   HSNS210-40   HSN210-40

HSNH210-46  HSNF210-46   HSNS210-46   HSN210-46

HSNH210-54  HSNF210-54   HSNS210-54   HSN210-54

HSN280系列

HSNH280-43  HSNF280-43   HSNS280-43   HSN280-43

 HSNH280-46  HSNF280-46   HSNS280-46   HSN280-46

HSNH280-54  HSNF280-54   HSNS280-54   HSN280-54

HSN440系列

HSNH440-40  HSNF440-40   HSNS440-40   HSN440-40

HSNH440-42  HSNF440-42   HSNS440-42   HSN440-42

HSNH440-46  HSNF440-46   HSNS440-46   HSN440-46

HSNH440-54  HSNF440-54   HSNS440-54   HSN440-54

HSN660系列

HSNH660-40  HSNF660-40   HSNS660-40   HSN660-40

HSNH660-44  HSNF660-44   HSNS660-44   HSN660-44

HSNH660-46  HSNF660-46   HSNS660-46   HSN660-46

HSNH660-51  HSNF660-51   HSNS660-51   HSN660-51

HSNH660-54  HSNF660-54   HSNS660-54   HSN660-54

HSN940系列

HSNH940-42  HSNF940-42   HSNS940-42   HSN940-42

HSNH940-46  HSNF940-46   HSNS940-46   HSN940-46

HSNH940-50  HSNF940-50   HSNS940-50   HSN940-50

HSNH940-54  HSNF940-54   HSNS940-54   HSN940-54

HSN1300系列

HSNH1300-38  HSNF1300-38   HSNS1300-38   HSN1300-38

HSNH1300-42  HSNF1300-42   HSNS1300-42   HSN1300-42

HSNH1300-46  HSNF1300-46   HSNS1300-46   HSN1300-46

HSNH1300-54  HSNF1300-54   HSNS1300-54   HSN1300-54

HSN1700系列

HSNH1700-42  HSNF1700-42   HSNS1700-42   HSN1700-42

HSNH1700-46  HSNF1700-46   HSNS1700-46   HSN1700-46

HSN2200系列

HSNH2200-42  HSNF2200-42   HSNS2200-42   HSN2200-42

HSNH2200-46  HSNF2200-46   HSNS2200-46   HSN2200-46

HSN2900系列

HSNH2900-40  HSNF2900-40   HSNS2900-40   HSN2900-40

HSNH2900-46  HSNF2900-46   HSNS2900-46   HSN2900-46

HSN3600系列

HSNH3600 HSNF3600  HSNS3600  HSN3600

HSNH3600-40   HSNF3600-40  HSNS3600-40   HSN3600-40

HSNH3600-46   HSNF3600-46  HSNS3600-46   HSN3600-46

南京科友工业设备有限公司 【KYP】

：

订货：

传真询价：

业务

：

地址：南京市浦口柳州南路

I. Introduction :

Friends of Pump Co., Ltd. Nanjing Branch is a professional screw R & D, production and sales , the company mainly produces three screw (with HSN, HSJ, HSG, SM, HSAK series ) , twin-screw pump (2G, 2GRN etc. series ) , the series product range, the products are widely used in mineral processing , metallurgy , coal, electricity , petroleum, chemical industry , building materials , municipal, environmental protection and other industries.

Second, the product introduction

< A > works

A screw to pay motor rotational movement with the outside world - "2 , screw groove periodic open , suction chamber volume increases , creating a vacuum - " 3 , the medium is sucked spiral groove , and was closed by a spiral groove - "4 , with the the rotation of the screw , with the helical grooves medium moves along the screw axis to the outlet - " 5, the last being excluded outside of the pump medium

 < Two > structural characteristics

1 , advanced structure , superior performance : high pressure to change the traditional balance of technology, Lord, from the low-pressure axial balancing pole device , the force evenly balanced , screw deformation, stable and reliable operation , no pulse , noise

2 , opposing design , reliable sealing : pump mechanical seal , seal chamber pressure and suction pressure figured , while the structural design for the circulating cooling sufficiently sealed chamber to ensure sealing effect, no leakage

3 , optimized and improved , appearance : change the traditional import and export position, so both sides of the pump and the pump inlet to form a straight line , appearance , and innovation in the design of the line , the user can not change the import and export pipeline site conversion

4 , valve components, safety protection products : products with a safety valve can instantly protect the pump against overload , but can not be used as a relief valve piping

5, the pump core components, easy maintenance and replacement parts: pump structure is simple and compact , modular pump core assembly adopts structure, easy to remove the whole repair, maintenance

6 , import and export in the form of a variety of combinations , convenient on-site pipe connections

Left right out into : routine use , no import code

Left out of the right forward: reverse import, and export codenamed Z

On the intake side : the end of the import and export code for the D

( Note: The import and export orientation as viewed from the relative position of the drive motor to the pump -side direction )

7 , a variety of installation methods , and better meet the conditions required

Horizontal installation [ H ]: universal consent , the public dock connector

Mounting bracket [F] ( also known as flange ) : to reduce crew size , coaxial good

Vertical installation [ S ]: greatly reduced horizontal space required for installation , coaxial good

< Three > Code Meaning

HSN H 280 - 54

Series Code Horizontal specifications helix angle

< Four > Performance Requirements

1 , requires lubrication medium : lubricating lubrication requirements or part

2, the media particles Requirements: No solid particles

3 , flow range :5 - 5300L / min

4 , working pressure : <= 4Mpa

5, the speed requirements :500 - 3000r / min

6, the viscosity range :3 - 1500mm2 / s

7 , temperature :0 - 150 ℃

8 , allowing the suction height <= 8m

< Five > Applications

Commonly used in transmission : Lubricants ( oils ) class , vegetable oil, water glycol ; grease , light diesel oil , residual fuel ( oil ) class , other viscous chemical medium , widely used in mineral processing, metallurgy , coal, electricity, oil , chemicals , building materials, municipal, environmental protection and other industries

< Six > Common Model

HSN40 Series

HSNH40-38 HSNF40-38 HSNS40-38 HSN40-38

HSNH40-46 HSNF40-46 HSNS40-46 HSN40-46

HSNH40-54 HSNF40-54 HSNS40-54 HSN40-54

HSN80 Series

HSNH80-36 HSNF80-36 HSNS80-36 HSN80-36

HSNH80-42 HSNF80-42 HSNS80-42 HSN80-42

HSNH80-46 HSNF80-46 HSNS80-46 HSN80-46

HSNH80-54 HSNF80-54 HSNS80-54 HSN80-54

HSN120 Series

HSNH120-42 HSNF120-42 HSNS120-42 HSN120-42

HSNH120-46 HSNF120-46 HSNS120-46 HSN120-46

HSNH120-54 HSNF120-54 HSNS120-54 HSN120-54

HSN210 Series

HSNH210-40 HSNF210-40 HSNS210-40 HSN210-40

HSNH210-46 HSNF210-46 HSNS210-46 HSN210-46

HSNH210-54 HSNF210-54 HSNS210-54 HSN210-54

HSN280 Series

HSNH280-43 HSNF280-43 HSNS280-43 HSN280-43

 HSNH280-46 HSNF280-46 HSNS280-46 HSN280-46

HSNH280-54 HSNF280-54 HSNS280-54 HSN280-54

HSN440 Series

HSNH440-40 HSNF440-40 HSNS440-40 HSN440-40

HSNH440-42 HSNF440-42 HSNS440-42 HSN440-42

HSNH440-46 HSNF440-46 HSNS440-46 HSN440-46

HSNH440-54 HSNF440-54 HSNS440-54 HSN440-54

HSN660 Series

HSNH660-40 HSNF660-40 HSNS660-40 HSN660-40

HSNH660-44 HSNF660-44 HSNS660-44 HSN660-44

HSNH660-46 HSNF660-46 HSNS660-46 HSN660-46

HSNH660-51 HSNF660-51 HSNS660-51 HSN660-51

HSNH660-54 HSNF660-54 HSNS660-54 HSN660-54

HSN940 Series

HSNH940-42 HSNF940-42 HSNS940-42 HSN940-42

HSNH940-46 HSNF940-46 HSNS940-46 HSN940-46

HSNH940-50 HSNF940-50 HSNS940-50 HSN940-50

HSNH940-54 HSNF940-54 HSNS940-54 HSN940-54

HSN1300 Series

HSNH1300-38 HSNF1300-38 HSNS1300-38 HSN1300-38

HSNH1300-42 HSNF1300-42 HSNS1300-42 HSN1300-42

HSNH1300-46 HSNF1300-46 HSNS1300-46 HSN1300-46

HSNH1300-54 HSNF1300-54 HSNS1300-54 HSN1300-54

HSN1700 Series

HSNH1700-42 HSNF1700-42 HSNS1700-42 HSN1700-42

HSNH1700-46 HSNF1700-46 HSNS1700-46 HSN1700-46

HSN2200 Series

HSNH2200-42 HSNF2200-42 HSNS2200-42 HSN2200-42

HSNH2200-46 HSNF2200-46 HSNS2200-46 HSN2200-46

HSN2900 Series

HSNH2900-40 HSNF2900-40 HSNS2900-40 HSN2900-40

HSNH2900-46 HSNF2900-46 HSNS2900-46 HSN2900-46

HSN3600 Series

HSNH3600 HSNF3600 HSNS3600 HSN3600

HSNH3600-40 HSNF3600-40 HSNS3600-40 HSN3600-40

HSNH3600-46 HSNF3600-46 HSNS3600-46 HSN3600-46

Industrial Equipment Co., Ltd. Nanjing Branch Friends [ KYP ]

Service :

Ordering Phone:

025 -58,871,283 Inquiry

Business :

:

Address: Pukou Liuzhou Road
